VAG 03C121110P THERMOSTAT

The THERMOSTAT is a wax-element thermostatic valve installed in the engine cooling circuit that controls coolant flow between the engine block and the radiator, holding the coolant within the narrow temperature band — typically 85–105°C — at which the engine achieves its designed combustion efficiency, emissions compliance, and lubrication oil viscosity. During cold start and warm-up the thermostat remains closed, blocking flow to the radiator and forcing coolant to circulate only through the engine block and heater matrix in a short bypass loop that accelerates warm-up rate; this reduces cold-start fuel consumption, hydrocarbon emissions, and engine wear from cold-oil operation by the maximum amount possible. As coolant reaches the thermostat's calibrated opening temperature — stamped on the thermostat body, typically 82°C, 87°C, or 92°C depending on the engine design — the wax element in the thermal actuator expands, compressing a rubber insert that forces the valve piston against a return spring and progressively opens the main valve disc, allowing increasing coolant flow through the radiator as temperature rises above the opening point. The thermostat reaches full open at approximately 10–15°C above its opening temperature, providing the full radiator flow required for maximum heat rejection at high engine load. On engines with map-controlled or electrically heated thermostats, the ECU can advance or retard the thermostat opening point by applying a heating current to an electrical element in the wax actuator, enabling variable temperature management for fuel economy optimisation at part load.

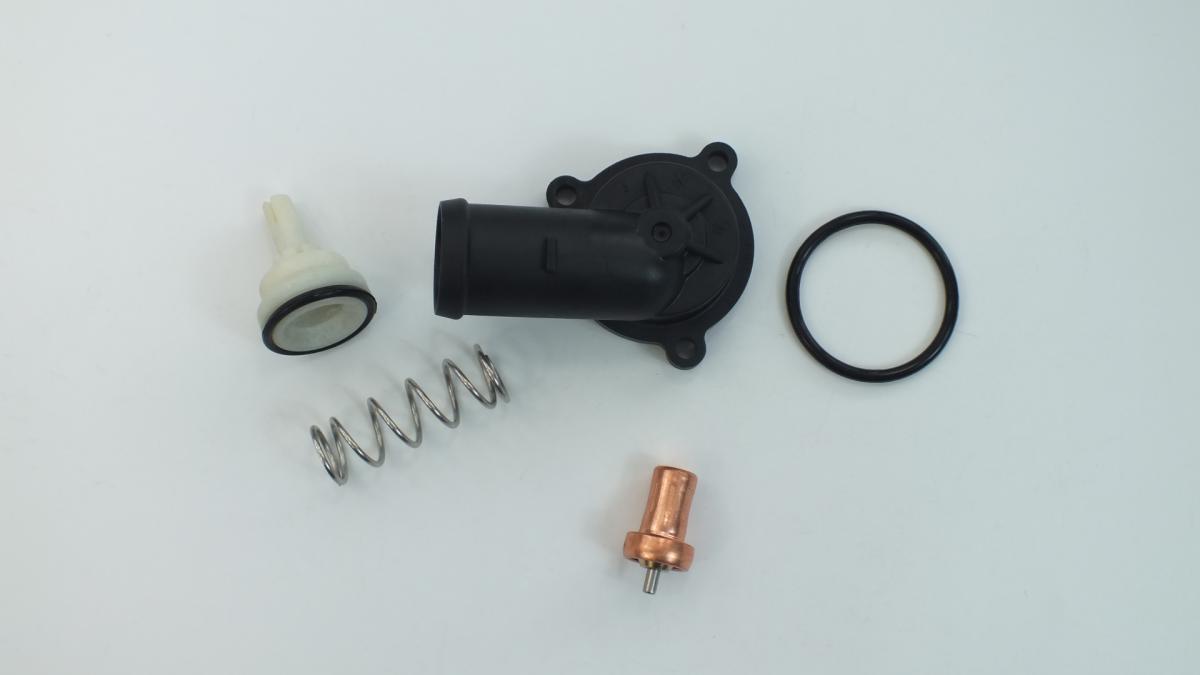

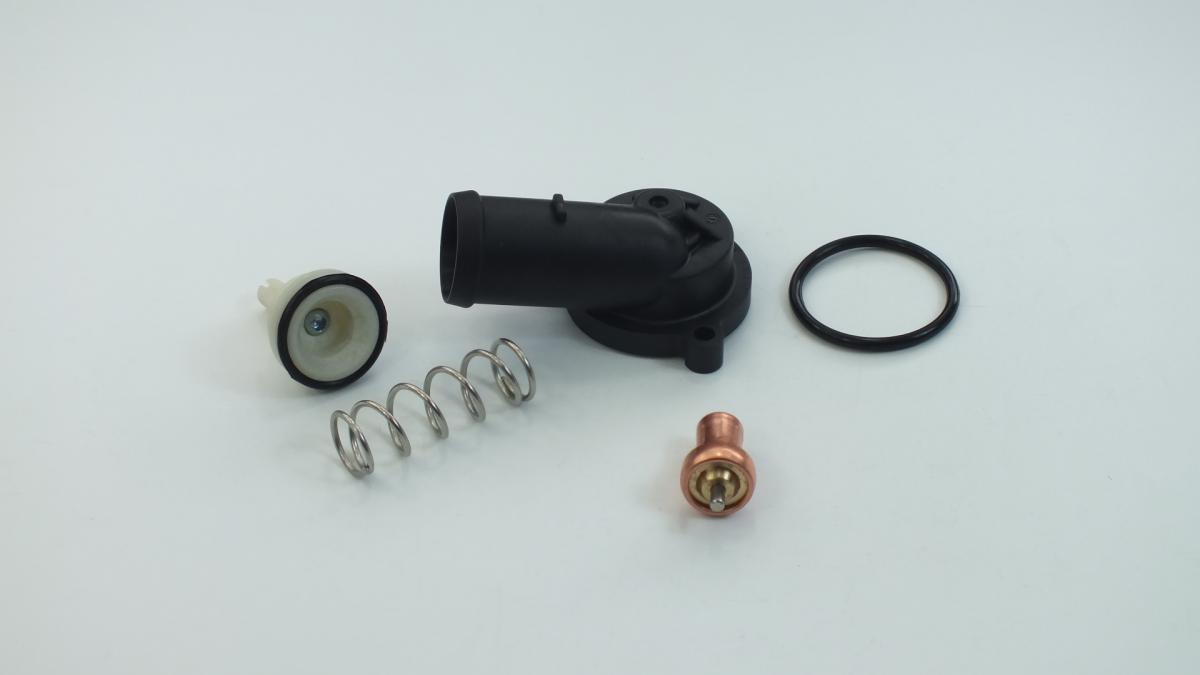

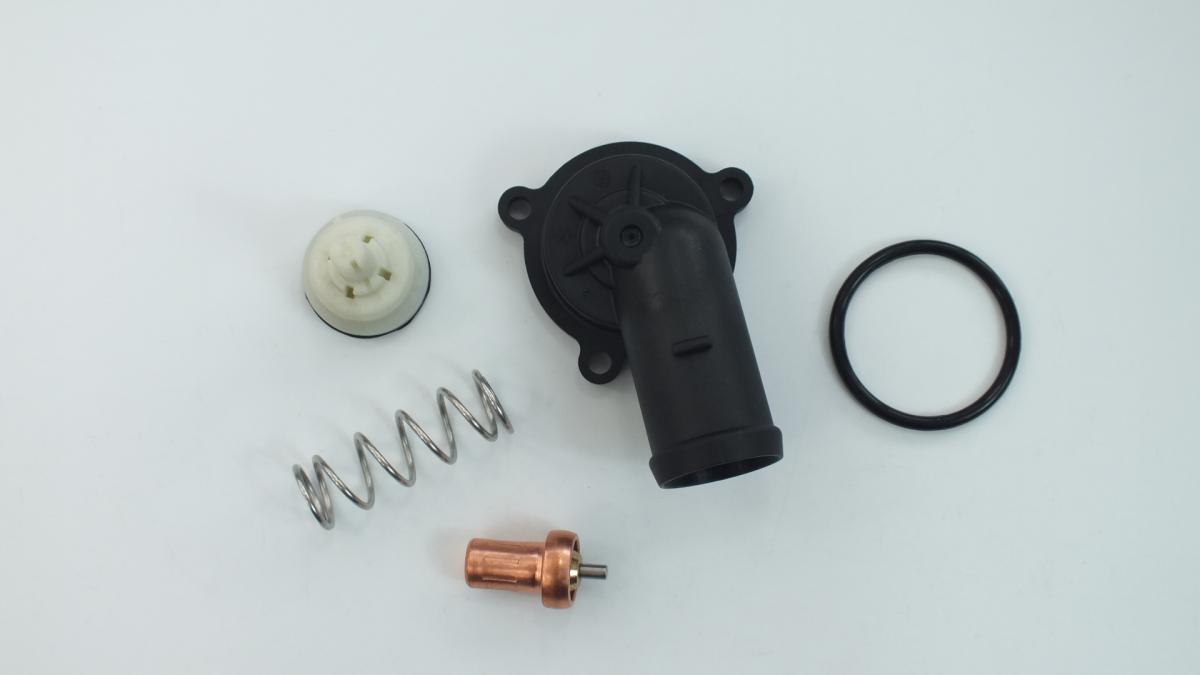

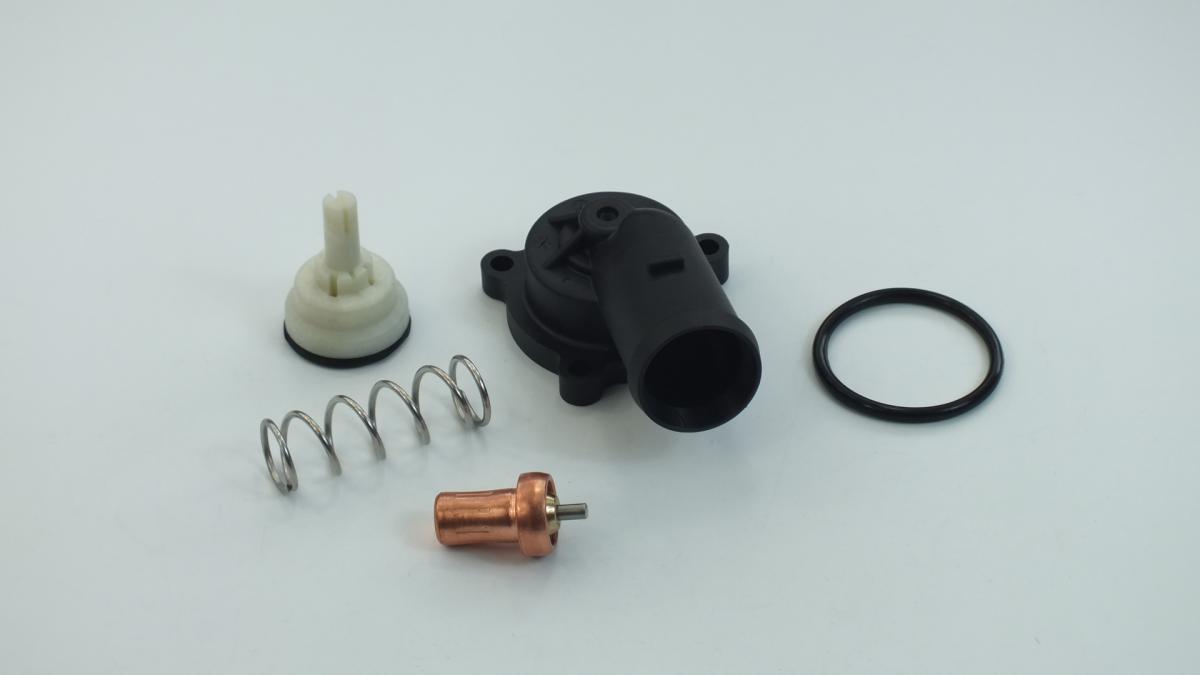

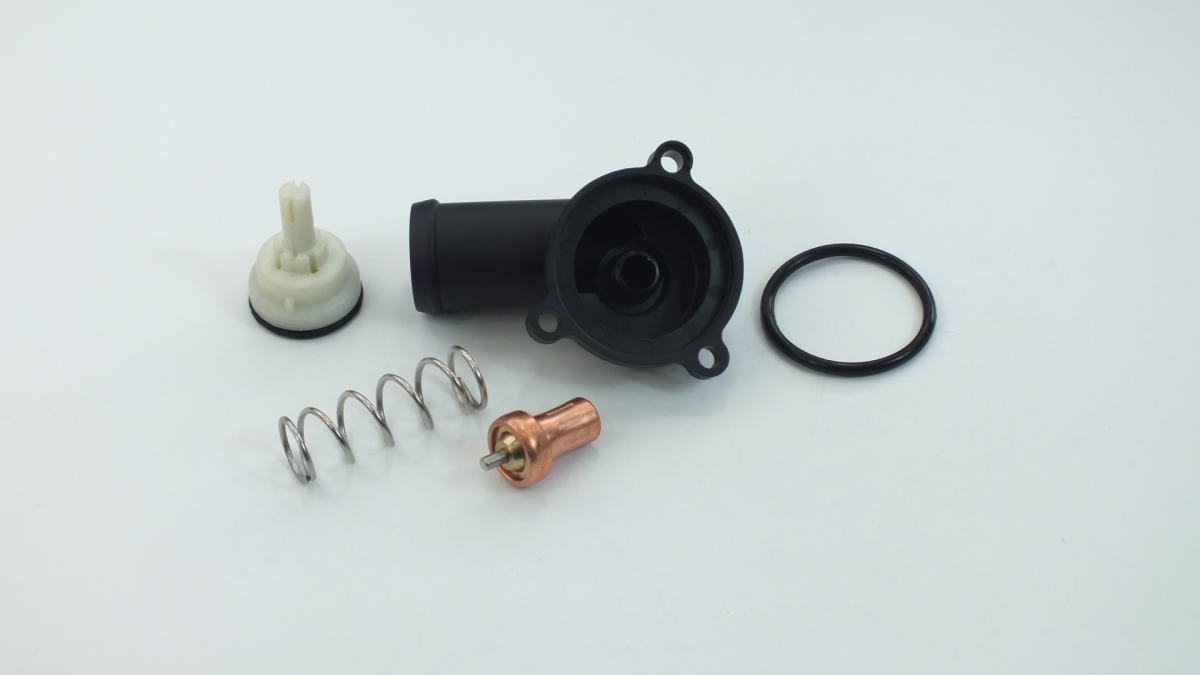

This unit — VAG 03C121110P — is manufactured to OEM-equivalent specifications: opening temperature and full-open temperature, valve disc diameter and maximum lift, bypass port geometry, housing flange dimensions and gasket face profile, and on map-controlled thermostats, heater element resistance and connector pinout are matched to the original part. Supplied as a direct replacement for standard fitment. Available wholesale from 3.18 USD, MOQ 500 pcs, production lead time 20-50 days.

Thermostats fail in two modes with opposite symptoms: a thermostat stuck closed prevents flow to the radiator at all temperatures, causing rapid overheating; a thermostat stuck open allows continuous full radiator flow from cold, preventing the engine from reaching operating temperature — causing rich fuelling, increased wear, heater output below cabin comfort level, and on modern ECU-managed engines, a thermostat monitor fault code. A thermostat stuck open is the more common failure mode and is frequently overlooked because the engine does not overheat — the temperature gauge simply never reaches its normal position and fuel consumption increases without an obvious cause.
