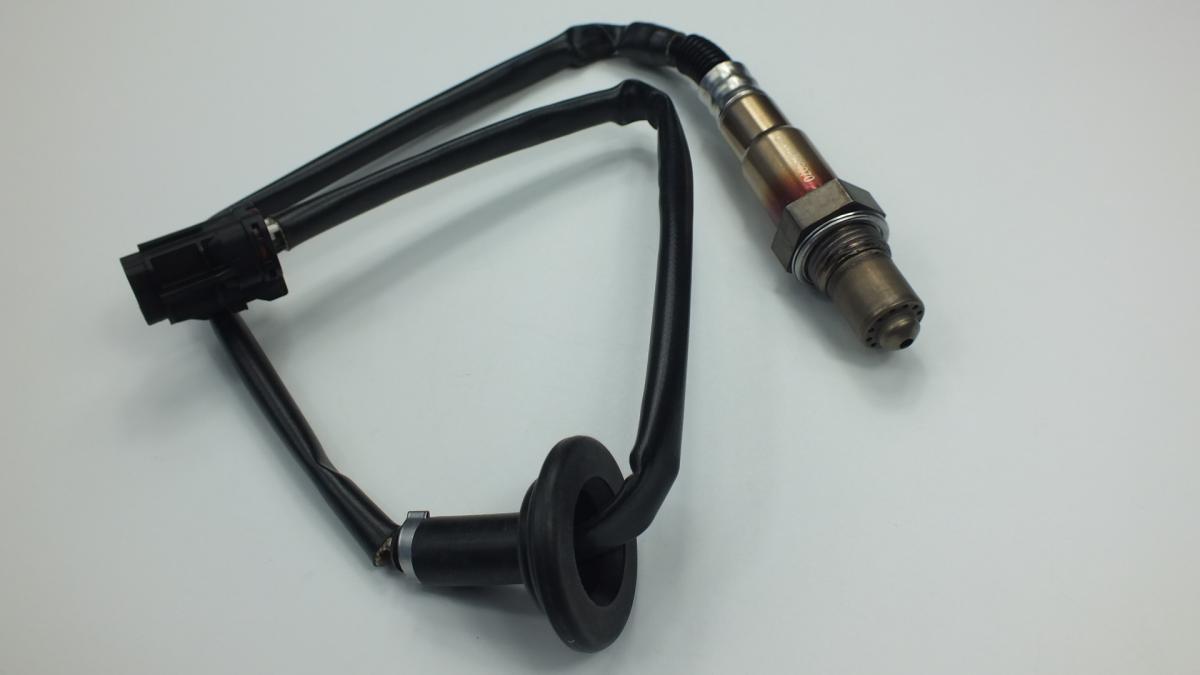

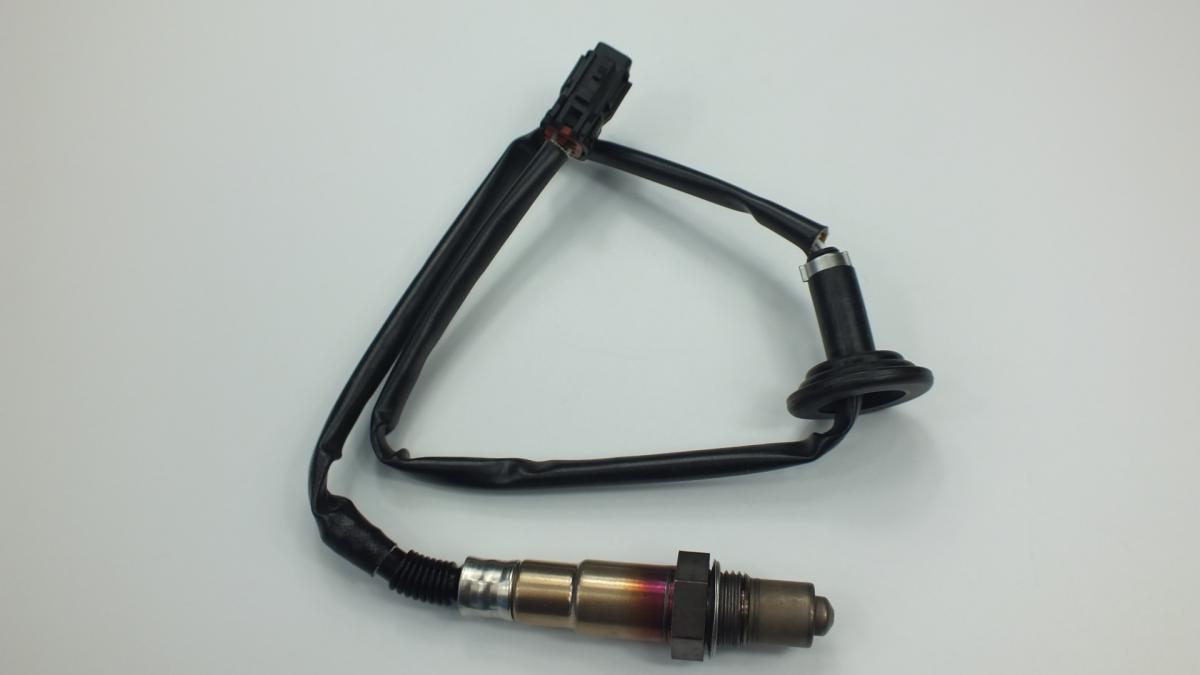

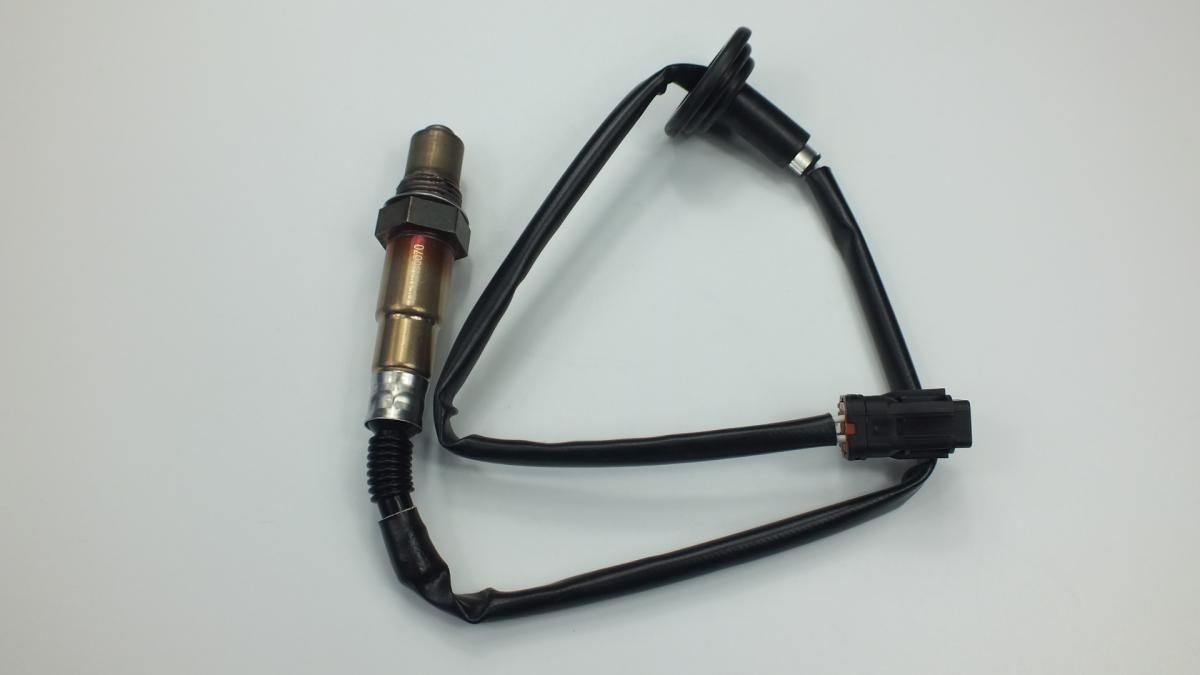

HYUNDAI/KIA 392102B070 SENSOR OXYGEN
Product Specifications
| HYUNDAI/KIA | 392102B070 |
| HYUNDAI/KIA | 392102E500 |
The SENSOR OXYGEN is an electrochemical sensor threaded into the exhaust pipe that measures residual oxygen concentration in the exhaust gas stream, allowing the ECU to calculate whether the air-fuel mixture is rich (excess fuel, insufficient oxygen) or lean (excess oxygen, insufficient fuel) and adjust injector pulse width in a continuous closed-loop feedback cycle. Narrowband zirconia sensors — the dominant design on upstream (pre-catalyst) positions — produce a switching voltage of 0.1–0.9 V that oscillates rapidly around the stoichiometric point (lambda = 1, AFR 14.7:1 for petrol). Wideband sensors used on modern engines produce a linear current output across a broad lambda range, enabling precise lean-burn and stratified charge control. A downstream (post-catalyst) sensor monitors catalytic converter efficiency by comparing its signal to the upstream sensor.

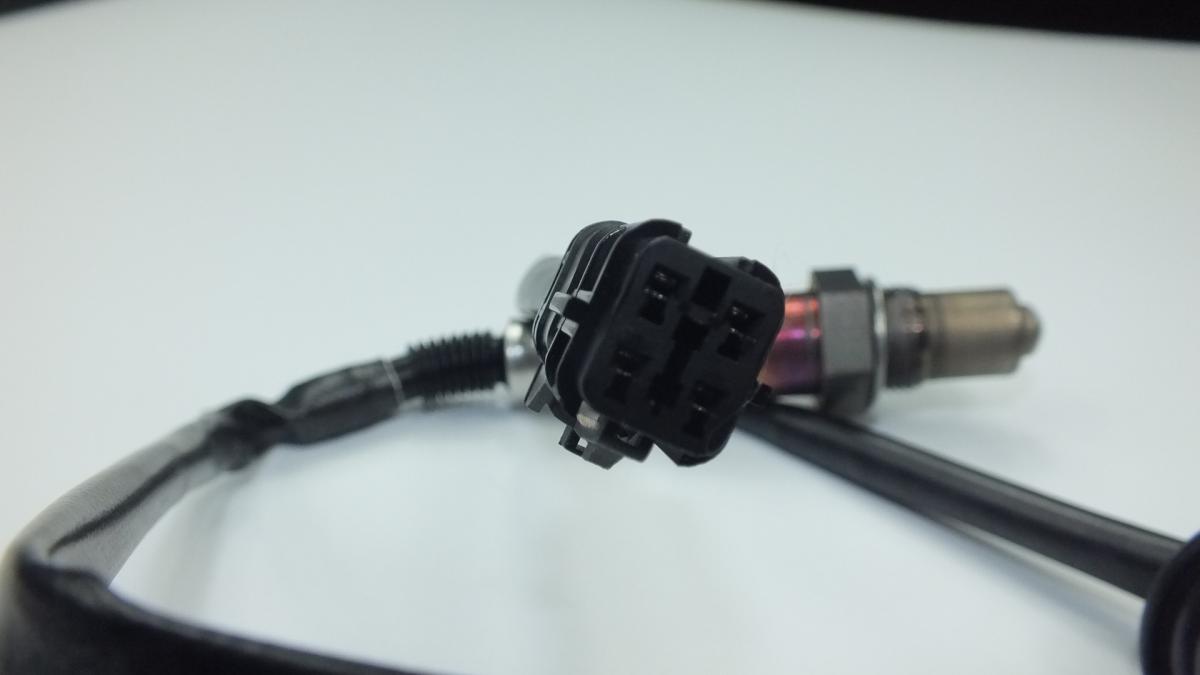

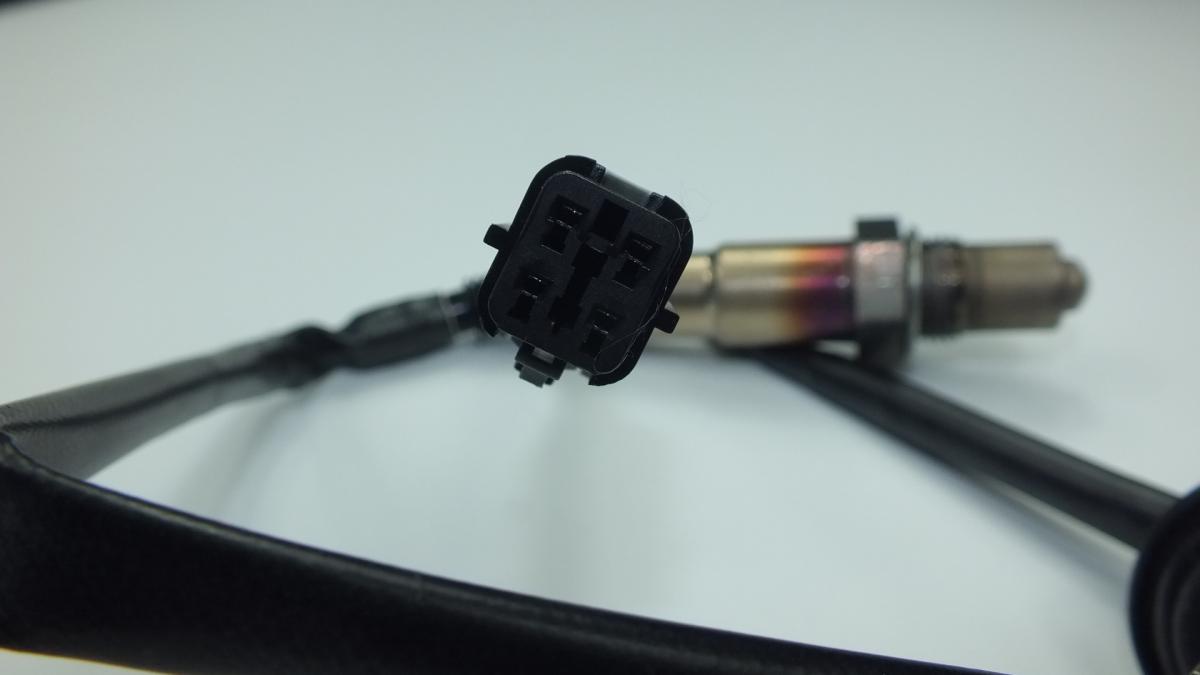

This unit — HYUNDAI/KIA 392102B070 — is manufactured to OEM-equivalent specifications: sensor element type (narrowband zirconia or wideband), output signal range, heater circuit resistance, thread size (M18x1.5 standard), body length, and connector pinout are matched to the original part. Supplied as a direct plug-and-play replacement for standard fitment. Available wholesale from 8.77 USD, MOQ 20 pcs, production lead time 15-20 days.
Oxygen sensors degrade through silicone poisoning from contaminated engine oil or incorrect RTV sealant used during engine repairs, lead and phosphorus poisoning from fuel additives, and simple thermal fatigue of the ceramic element after high mileage. A failing narrowband sensor typically slows its switching frequency before stopping completely — a scan tool displaying live O2 sensor data will show a sluggish or fixed voltage output instead of a rapid oscillating waveform. Always address the root cause of sensor contamination — oil burning, coolant leaks into the exhaust — before fitting a new sensor.
- Allow the exhaust system to cool completely before beginning work — oxygen sensor threads seize in hot exhaust pipe bosses and the sensor body reaches temperatures that cause severe burns. Apply penetrating oil to the sensor thread and allow it to soak for at least 20 minutes before attempting removal on a corroded installation.
- Use a dedicated oxygen sensor socket (typically 22 mm with a side slot for the wiring harness) to remove the sensor. Never use an open-ended spanner on the sensor body — rounding the hex will require cutting the sensor out. If the sensor is seized, apply heat to the exhaust boss with a gas torch (not the sensor body) and attempt removal while the boss is still warm but safe to handle.
- Inspect the sensor thread boss in the exhaust pipe after removal. Clean the thread with an M18x1.5 thread chaser if damaged. A damaged or stripped boss requires repair with a thread insert before fitting the new sensor — an imperfect seal at the sensor thread allows exhaust gas ingress that will contaminate and destroy the new sensor element.
- Apply anti-seize compound sparingly to the sensor thread only — keep the last two threads and the sensor tip completely free of any compound. Anti-seize on the sensing element will contaminate the ceramic and cause immediate sensor failure. Use only oxygen-sensor-safe nickel-based anti-seize, never copper-based compound.
- Route the sensor wiring harness away from hot exhaust components and secure it with the original clips. A harness resting against the exhaust pipe will melt its insulation within minutes of engine startup, causing a heater circuit fault code on an otherwise functional new sensor.
- Install the new SENSOR OXYGEN (HYUNDAI/KIA 392102B070), torque to OEM specification (typically 40–55 Nm), reconnect the wiring connector, start the engine and allow it to reach full operating temperature, then use an OBD-II scanner to clear stored fault codes and verify the sensor switching waveform on live data before confirming the repair.
