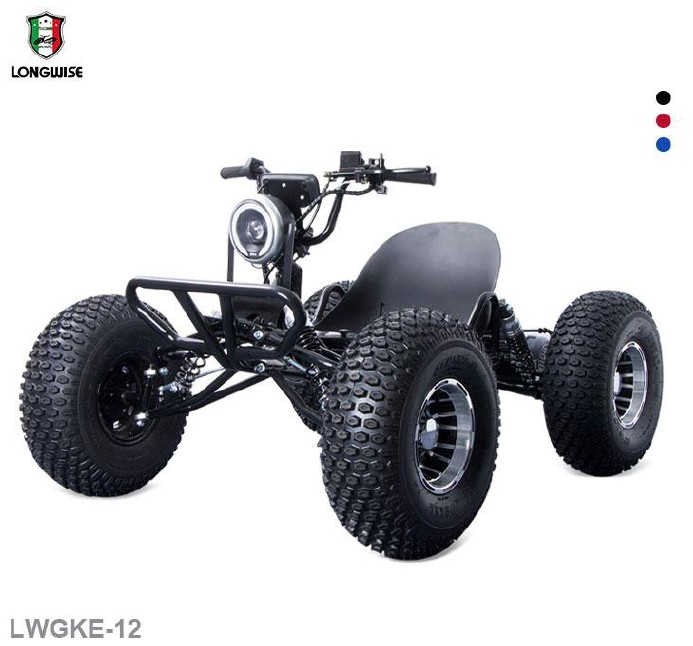

LONGWISE LWGKE12 MOUNTAIN DRIFT GO-KART
Product Specifications
| LONGWISE | LWGKE12 |
Product Overview
The LWGKE-12 represents advanced electric ATV engineering, combining robust high-carbon steel construction with efficient electric propulsion for exceptional off-road performance. This 4x4 electric quad bike is specifically designed for recreational riders, outdoor enthusiasts, and commercial operators seeking a zero-emission alternative to traditional gas-powered ATVs.
The vehicle features a powerful 1200W brushless DC motor paired with a high-capacity 48V/10.4Ah lithium-ion battery system, offering impressive torque delivery and respectable operating range for recreational use. Built with over 20 years of manufacturing expertise in electric vehicle production and export to more than 60 countries worldwide.

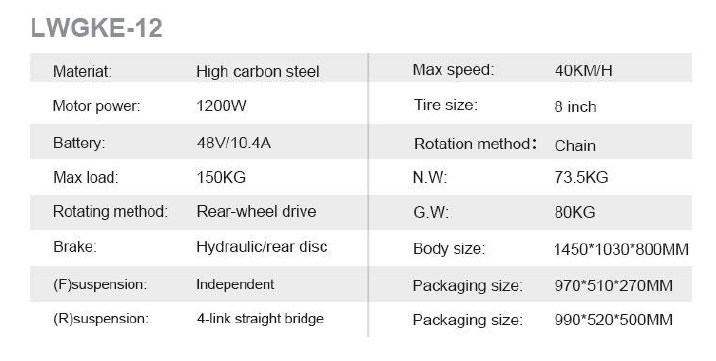

Core Specifications
Detailed Technical Specifications
| Component | Specification | Details |
|---|---|---|
| Frame Material | High Carbon Steel | Welded tubular construction for maximum durability |
| Motor Type | 1200W Brushless DC | Maintenance-free brushless design with high efficiency |
| Battery Pack | 48V / 10.4Ah Lithium-Ion | Rechargeable with integrated BMS protection |
| Charging Time | 6-8 hours | Standard charging with included AC adapter |
| Range per Charge | 25-35 km | Varies with terrain, rider weight, and riding style |
| Maximum Speed | 40 km/h | Electronically limited for safety compliance |
| Drive System | Rear-Wheel Drive | Chain-driven rear axle for reliable power transmission |
| Front Suspension | Independent Suspension | Independent A-arm design for superior handling |
| Rear Suspension | 4-Link Straight Bridge | Solid axle with 4-link suspension geometry |
| Brake System Front | Hydraulic Disc Brake | Professional-grade hydraulic system |
| Brake System Rear | Rear Disc Brake | Mechanical or hydraulic rear disc |
| Tire Specification | 8-inch All-Terrain | Knobby tread for grip on dirt, grass, gravel |
| Maximum Load | 150 kg | Includes rider weight plus any cargo |
| Overall Dimensions | 1450 x 1030 x 800 mm | Length x Width x Height (assembled) |
| Packaging Size | 970x510x270mm + 990x520x500mm | Two-box shipping configuration |
Ideal Use Cases
The LWGKE-12 electric ATV is engineered for recreational and light commercial applications where quiet, emission-free operation is valued. This vehicle excels in environments where traditional gas-powered ATVs may be prohibited or impractical.
Recreational and Leisure Markets
- Adventure Parks and Off-Road Trails: Perfect for guided tour operations, ATV rental facilities, and outdoor adventure centers seeking eco-friendly fleet vehicles
- Resort and Hospitality Properties: Ideal for large resort grounds, eco-lodges, and glamping sites where guests can explore property trails
- Private Land Recreation: Excellent for farm property, rural estates, and private land owners wanting recreational vehicles for trail riding
- Youth Training Programs: Suitable for supervised ATV training programs for teenagers (age 14+) learning off-road operation
- Camp and Outdoor Education: Valuable for summer camps and outdoor education programs teaching responsible vehicle operation
Light Commercial Applications
- Property Maintenance: Efficient transport for groundskeepers and maintenance staff on large properties
- Agricultural Support: Useful for checking livestock, transporting tools, and perimeter inspection
- Security Patrol: Quiet operation ideal for nighttime security patrols without disturbing residents
- Event Management: Practical transport for event staff at outdoor festivals and sporting events
- Eco-Tourism Operations: Essential for wildlife sanctuaries and nature reserves needing quiet transport
User Profile and Skill Level
Height Range: 145 cm - 185 cm for comfortable control
Weight Limit: Maximum 150 kg total including rider and cargo
Experience Level: Beginner-friendly with throttle response suitable for new riders
Physical Requirements: Must be able to safely mount/dismount and reach all controls
Skill Level Considerations
Beginner Riders: The electric powertrain provides smooth, predictable power delivery without clutch operation or gear shifting. Throttle response is progressive, making it easier for new riders to develop throttle control skills.
Intermediate Riders: Experienced riders will appreciate the instant torque for technical trail riding, hydraulic front brake for precise control, and independent suspension for challenging terrain.
Advanced Riders: While not designed for extreme off-road competition, the LWGKE-12 offers advanced riders an enjoyable electric experience for casual trail riding and exploring remote areas quietly.
Environmental and Operational Advantages
- Zero Emissions: 100% electric powertrain produces no exhaust emissions, suitable for environmentally sensitive areas
- Quiet Operation: Brushless motor generates minimal noise (60-70 dB), allowing use in noise-restricted areas
- Lower Operating Costs: Electricity costs significantly less than gasoline per km. No oil changes, spark plugs, or exhaust maintenance
- Instant Readiness: No warm-up period required. No starting difficulties in cold weather, no carburetor issues
Lithium-Ion Battery Technology
The LWGKE-12 utilizes a professional-grade 48V / 10.4Ah (499.2Wh) lithium-ion battery pack specifically engineered for electric vehicle applications. This battery chemistry offers significant advantages over traditional lead-acid batteries.
Battery Pack Specifications
| Parameter | Value | Explanation |
|---|---|---|
| Voltage | 48V Nominal | Higher voltage allows more efficient power delivery to 1200W motor |
| Capacity | 10.4Ah | Total energy: 48V x 10.4Ah = 499.2 Wh |
| Chemistry | Lithium-Ion | High energy density, long cycle life, stable discharge |
| BMS | Integrated Smart BMS | Protects against overcharge, over-discharge, over-current, short circuit |
| Cycle Life | 500-800 cycles | Battery retains 80% capacity after 500-800 full charge cycles |
| Charging Time | 6-8 hours | Full charge from depleted state with included charger |
| Operating Temp | -10C to +45C | Avoid charging below 0C |
Expected Range and Performance
Range Estimates by Riding Condition
- Flat, smooth terrain (20-25 km/h): 30-35 km range - motor at partial power
- Mixed terrain with moderate hills: 25-30 km range - typical recreational riding
- Hilly terrain, frequent acceleration: 20-25 km range - more demanding conditions
- Steep hills, rough terrain, heavy rider: 15-20 km range - continuous high power draw
- Aggressive full-throttle riding: 12-18 km range - maximum power significantly reduces range
Tire Pressure: Maintain proper inflation - under-inflated tires increase rolling resistance
Smooth Throttle: Avoid aggressive acceleration - smooth throttle dramatically improves efficiency
Temperature: Ride in moderate temps (15-25C optimal) - extremes reduce performance
Regular Charging: Charge when capacity drops to 20-30% remaining for longest lifespan
Charging System
Charger Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | AC 100-240V, 50/60Hz (universal) |
| Output Voltage | DC 54.6V (charging voltage for 48V pack) |
| Output Current | 2-3A typical |
| Charging Time | 6-8 hours from empty to 100% |
| LED Indicators | Red = Charging | Green = Fully charged |
| Safety Features | Over-voltage, over-current, short-circuit, reverse polarity protection |
Charging Procedure
- Park vehicle on level ground in well-ventilated area
- Allow battery to cool 15-30 minutes after riding
- Connect charger to vehicle charging port
- Plug charger into AC wall outlet (100-240V compatible)
- Verify charger LED shows RED (charging in progress)
- Wait 6-8 hours - LED turns GREEN when complete
- Disconnect: first unplug from wall, then from vehicle
DO NOT charge immediately after riding - allow 15-30 min cooling
NEVER charge in enclosed spaces - always well-ventilated area
AVOID charging below freezing - can cause permanent damage
USE ONLY ORIGINAL CHARGER - incorrect voltage damages battery
Pre-Ride Inspection
| Item | Check/Action | Acceptable Condition |
|---|---|---|
| Battery Charge | Check indicator | Minimum 30% for intended ride |
| Tire Pressure | Visual + thumb press | Firm with minimal deflection |
| Brake Function | Roll forward, test both brakes | Wheels lock, no sponginess |
| Throttle Return | Twist, release | Snaps back immediately |
| Chain Tension | Press mid-span | 10-20mm deflection, lubricated |
| Steering | Turn full left/right | Smooth, no binding |
Starting and Basic Operation
Starting Procedure
- Mount from left side, sit with feet on footrests
- Insert key into ignition switch
- Turn key clockwise to ON position
- Check battery indicator shows adequate charge
- Release parking brake (if equipped)
- Gently apply throttle to begin moving
Braking Techniques
Normal Braking: Release throttle first, apply 60-70% front brake and 30-40% rear brake with progressive pressure.
Emergency Braking: Apply maximum front brake firmly (avoid locking), supplement with rear brake, shift weight rearward.
Maintenance Schedule
Gas ATV: 8-12 hours/year | Cost: $200-$400 (oil, filters, plugs, fuel system)
Labor savings: 60-70% reduction in maintenance time/cost
Maintenance Tasks
| Interval | Tasks |
|---|---|
| Weekly | Chain lubrication | Tire pressure check | Bolt torque check | Battery connections |
| Monthly | Chain deep clean | Brake pad inspection | Suspension check | Electrical system test | Wheel bearings |
| Seasonal | Deep cleaning | Lubrication service | Brake pad replacement | Chain/sprocket replacement | Tire replacement |
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Won't power on | Dead battery | Disconnected connector | Blown fuse | Charge battery | Check connector | Replace fuse |
| Motor hums, no movement | Broken chain | Stripped sprocket | Inspect chain | Check sprocket teeth |
| Reduced range | Battery degradation | Low tire pressure | Binding brakes | Test battery | Inflate tires | Check brakes |
| Spongy brakes | Air in lines | Low fluid | Worn pads | Bleed brakes | Top up fluid | Replace pads |
| Steering wobble | Loose bearings | Unbalanced wheel | Damaged tire | Adjust bearings | Balance wheel | Inspect tire |
Wholesale Pricing and MOQ
Volume Pricing Tiers
| Order Quantity | Discount | Best For |
|---|---|---|
| 3-10 units | List price | Small rental operations, testing inventory |
| 11-25 units | 5-10% off | Adventure parks, dealer initial stock |
| 26-50 units | 10-15% off | Established rental fleets, regional distributors |
| 51-100 units | 15-20% off | National distributors, resort chains |
| 100+ units | 20-30%+ (negotiable) | Private label programs, OEM partnerships |
Customization Services
Color and Graphics
- Custom frame powder coat colors (MOQ 10 units per color)
- Custom body panel colors and graphics - ideal for branded fleets
- Custom seat upholstery colors, embroidered logos
- Custom vinyl graphics, company logos, safety warnings
Electrical Modifications
- Battery capacity upgrades (12Ah, 15Ah, 20Ah options)
- Motor power options (800W, 1000W, 1500W)
- Electronic speed limiters for specific max speeds
- LED headlight/taillight, work lights, turn signals
- LCD dashboard with speed, battery, trip distance, error codes
White-Label and Private Branding
- Custom branding with your company name/logo on frame
- Custom carton printing with your branding
- Manuals, warranty cards with your branding
- Exclusive color/spec packages (MOQ 100 units)
Shipping and Logistics
Container Loading
| Container Type | Dimensions | Unit Capacity |
|---|---|---|
| 20' Standard | 5.9 x 2.35 x 2.39m | 45-55 units |
| 40' Standard | 12.03 x 2.35 x 2.39m | 95-110 units |
| 40' High Cube | 12.03 x 2.35 x 2.69m | 110-125 units (optimal) |
Shipping Options
- Sea Freight: 25-45 days port-to-port | Most cost-effective for container loads
- Air Freight: 5-10 days | For urgent small orders | Significantly higher cost
- Rail (Europe/Asia): 18-25 days China-Europe | Middle ground cost/speed
HS Code: 8711.60 - Electric motorcycles and cycles with electric motor for propulsion
Q: Is the LWGKE-12 suitable for adults or only teenagers?
The LWGKE-12 is designed as an entry-level recreational ATV for teenagers (age 14+) and smaller adults. The 150kg max load and compact size suit riders 145-175cm tall weighing up to 90kg. Larger adults may find it cramped.
Q: How does 40 km/h compare to gas ATVs? Is it fast enough?
The 40 km/h (25 mph) speed is moderate vs full-size gas ATVs (60-80 km/h+), but appropriate for this vehicle's market. It's fast enough for exciting trail riding, safe for less experienced riders, compliant with many park speed limits, and optimal for maximizing battery range.
Q: Can I upgrade to a higher-capacity battery for longer range?
Yes, battery capacity upgrades are possible. Higher-capacity options (12Ah, 15Ah, or 20Ah) may be available at order time. Upgrading existing vehicles requires compatibility verification. Contact supplier before attempting upgrades - incorrect specs can damage systems or create fire hazard.
Q: What's the real-world battery range?
Best case (flat, light rider, moderate speed): 30-35 km. Typical (mixed terrain, average rider): 20-25 km. Worst case (hills, heavy rider, aggressive riding, cold): 15-20 km. Most users report 1.5-2 hours riding per charge under normal conditions.
Q: Is it waterproof? Can I ride in rain or through water?
Water-resistant but NOT waterproof. Safe: Light rain, shallow puddles (2-3cm), garden hose washing. Unsafe: Heavy rain, water deeper than footrests (15-20cm), pressure washing battery, salt water. After wet riding, dry thoroughly before charging.
Q: What safety equipment is required?
Essential (always): DOT helmet (full-face preferred), eye protection (goggles/shield), sturdy boots with ankle support. Highly recommended: Gloves, long pants, long sleeves. For youth under 16: ALL protection MANDATORY with adult supervision.
Q: How much does charging cost?
Battery: 499Wh capacity. With 85% charging efficiency = 0.587 kWh from wall. Cost examples: USA avg ($0.14/kWh): $0.08/charge | Europe avg ($0.25/kWh): $0.15/charge. At 25km range/charge = $0.30-0.70 per 100km. Annual (1000km): Electric: $3-7 | Gas: $120+ fuel. Total savings: $200+ per year.
Q: Can I tow a trailer or carry cargo?
NOT recommended. 1200W motor optimized for rider only, not towing. No trailer hitch. Brakes sized for vehicle+rider only. Light cargo acceptable: Small backpack, water bottles (5-10kg) on frame or rider's back.
Q: Is it street-legal for public roads?
In most jurisdictions, NO. Lacks turn signals, mirrors, horn, brake lights, license plate mount. 40 km/h too slow for traffic safety. Operating unregistered vehicle on public roads = fines, impoundment, liability. Operate only on: private property with permission, designated OHV areas, commercial facilities.
Q: How does it compare to gas ATVs?
Advantages: Instant torque, silent operation, zero emissions, no warm-up, smooth power, lower vibration, 80-90% lower operating costs, 60-70% lower maintenance. Disadvantages: Limited range (25-30km vs 100+), lower top speed (40 vs 60-80 km/h), long refuel time (6-8hr vs 2min), performance degrades as battery depletes, cold weather reduces range.
Q: What if I run out of battery power while riding?
You're stuck! Prevention: Start with 100% charge, monitor indicator constantly, plan conservatively, turn back at 50% battery. If stranded: Vehicle weighs 73.5kg - too heavy to carry, possible to push on flat ground. Call for vehicle pickup. Limited range is primary constraint - plan accordingly!
