Wheel Bearings and Hub Units: Complete Technical and Wholesale Sourcing Guide

A complete guide to wheel bearings and hub units: how the three generations differ, how they fail, how to diagnose and fit them correctly, OEM numbers by brand, and what to verify when sourcing wholesale.

The wheel bearing carries the entire weight of the vehicle on a few square centimeters of hardened steel, while turning several hundred times a minute. It does this for years without attention - and when it fails it announces itself with a noise that every mechanic recognizes. Every vehicle has four, and on modern cars each one is an integrated unit that also carries the ABS encoder.

For distributors, hub units are a steady, high-value category with a real technical barrier: generations, flange patterns and encoder types must match exactly. For workshops, most comebacks are caused not by the bearing but by how it was installed. This guide covers both sides.

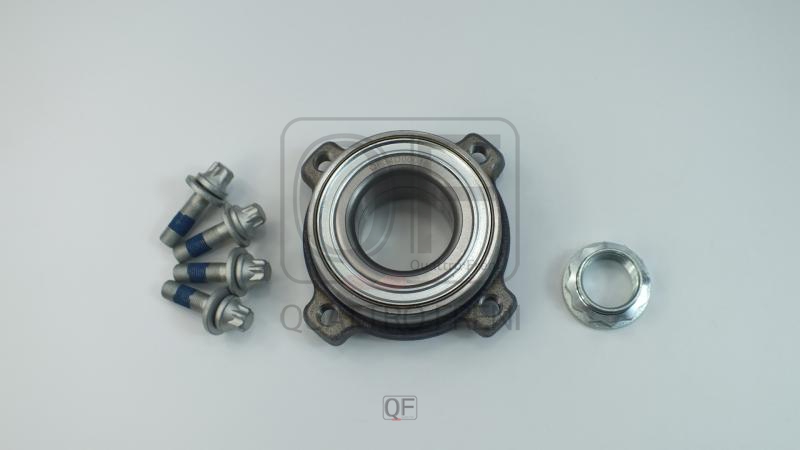

Wheel hub bearing unit, BMW 33406789970. View offers

1. How Wheel Bearings Work

A wheel bearing lets the wheel rotate freely while holding it rigidly in position against the vehicle's weight, cornering forces and braking loads. Passenger cars use a double-row design - two rows of balls or tapered rollers set at an angle to each other - so that one compact unit can take loads from both directions along the axle as well as radially.

The rolling elements run on hardened raceways, separated by a cage and lubricated for life with a measured charge of grease. Seals on both sides keep the grease in and water and dirt out. On almost all vehicles built in the last two decades, one of those seals also contains a magnetic encoder ring that the ABS wheel speed sensor reads. The bearing is therefore part of the braking and stability systems, not just the suspension. For the sensor side, see our ABS wheel speed sensor guide.

2. The Three Generations of Hub Unit

The generation is fixed by the vehicle design - you cannot substitute one for another. For sourcing it matters because the three generations have different price levels, different failure modes and very different return rates. Generation 1 bearings are cheap but are frequently damaged during fitting; Generation 3 units cost more and are much harder to install wrongly.

3. Failure Symptoms and Diagnosis

Humming or growling that rises with speed. The classic symptom. The noise depends on road speed, not engine speed, and does not change when the clutch is pressed.

Noise that changes in corners. Cornering shifts load onto the outer wheels. If the noise grows in a left-hand bend, the right-hand bearing is usually the one at fault, and the reverse.

Vibration felt through the steering wheel or the floor, increasing with speed.

Play at the wheel. With the wheel off the ground, rocking it at the top and bottom reveals looseness in a badly worn bearing.

ABS or stability-control warning. A damaged encoder ring, or excessive play that changes the sensor air gap, produces wheel speed sensor fault codes.

Uneven tire wear and a hot hub appear in advanced cases.

To confirm the diagnosis, raise the vehicle, spin each wheel by hand and listen and feel for roughness, then check for play. On driven axles, running the wheels on a lift and listening at each knuckle with a mechanic's stethoscope identifies the side quickly. Tires with a sawtooth wear pattern produce a very similar noise, so rule them out by swapping wheels front to rear before condemning a bearing.

4. Why Wheel Bearings Fail

Water and dirt past the seal. The most common cause in service. Once the grease is contaminated, the raceways corrode and pit. Deep water, pressure washers aimed at the hub and damaged seals all shorten life.

Impact damage. Potholes and kerb strikes dent the raceways. The damage is microscopic at first and becomes audible thousands of kilometers later.

Installation errors. Pressing on the wrong ring, hammering the bearing home or tightening the axle nut with an impact wrench damages a new bearing before the car leaves the workshop. This is the leading cause of early failures and warranty claims.

Wrong axle nut torque. The nut sets the preload of the bearing. Too little allows play; too much overloads the raceways.

Modified wheels. Wider wheels, spacers and a changed offset move the load away from the bearing's center and multiply the stress on it.

Poor material. Low-grade steel, shallow heat treatment or the wrong grease produce a bearing that looks right and lasts a fraction of the normal life.

5. Installation: Where Most Failures Start

Press only on the ring that is being fitted. When pressing a bearing into the knuckle, the force goes through the outer ring. When pressing the hub into the bearing, the inner ring must be supported. If the pressing force passes through the balls or rollers, the raceways are dented and the bearing is scrap, even though it looks perfect.

Never use a hammer. A blow that seems gentle is a shock load of several tonnes at the contact points.

Fit the encoder side toward the sensor. On bearings with a magnetic encoder, one seal is the encoder - usually darker than the other. Fitted the wrong way round, the bearing is mechanically fine and the ABS has no signal. A magnetic field indicator card shows the encoder side in seconds. Keep encoder bearings away from magnets and metal filings.

Clean and inspect the seat. Corrosion or a scored bore in the knuckle distorts the outer ring. A damaged hub or knuckle must be replaced, not reused.

Use a new axle nut and the specified torque. Tighten with a torque wrench to the manufacturer's figure and procedure. Do not use an impact wrench for final tightening, and do not lower the car onto its wheels before the nut is torqued unless the procedure says so.

Torque the wheel bolts evenly. Uneven clamping distorts the flange of a Generation 3 unit and causes brake judder that is blamed on the discs.

6. OEM Cross-Reference Examples by Brand

Hub units are highly vehicle-specific: flange diameter, bolt pattern, spline count, encoder type and sensor connector all vary. The OEM number is the only safe way to match one. The numbers below are examples with supplier offers on ok.parts; the notes show how the number itself often tells you what the part is.

This is a small sample. Any hub unit can be found the same way: enter its OEM number in the search bar. If you are unsure how to read or write a number, see How to Find and Read an OEM Part Number.

Search Wheel Bearings by OEM Number

7. Why Hub Units Are a Strong Wholesale Category

Guaranteed replacement demand. A wheel bearing is a wear part with a typical life of 130,000 to 160,000 km. Every vehicle will need at least one set in its lifetime, and vehicles on poor roads need them sooner.

Visible in real demand data. In our analysis of 6,032 purchase requests, wheel hubs and hub bearings were among the ten most requested part types.

Rising unit value. As the vehicle fleet moves from Generation 1 cartridges to Generation 3 units with integrated encoders, the value of each replacement rises.

A technical barrier. Correct cross-referencing is difficult enough to keep casual sellers out. A distributor who can reliably supply the right unit earns repeat business from workshops.

Often sold in pairs. Workshops frequently replace both sides of an axle on high-mileage cars, and many add the ABS sensor at the same time.

8. What to Verify When Sourcing

China's bearing industry ranges from world-class to very poor, sometimes on the same street. The clusters are described in Where Auto Parts Are Made in China. Whatever the source, these are the points to check.

Steel and heat treatment. Rings and rolling elements should be bearing steel (GCr15, the equivalent of SAE 52100) hardened to roughly 58-62 HRC. Ask for material certificates and hardness test results by batch.

Grease. The type and quantity of grease decide service life at temperature. A reputable factory states the grease brand and fill quantity.

Seals and encoder. Check seal lip design against the original and confirm the encoder has the correct number of magnetic poles. An encoder with the wrong pole count gives a wheel speed error and an ABS fault.

Dimensions. Flange runout, pilot diameter, bolt circle, stud length and spline fit should be measured against an original sample, not just against a drawing.

Noise and vibration testing. Serious manufacturers test every unit on a vibration analyzer. Ask to see the test station and the reject rate.

Branding honesty. Bearings are one of the most counterfeited product groups. If you are offered a premium brand at a low price, read Counterfeit Auto Parts: How to Spot Fakes Before You Pay first.

For the inspection process itself - sampling plans, in-process checks and pre-shipment control - see our quality control guide.

9. Frequently Asked Questions

What are the symptoms of a bad wheel bearing?

A humming or growling noise that rises with road speed and changes when cornering, vibration through the steering wheel or floor, play when the raised wheel is rocked, and in some cases an ABS warning light.

How long do wheel bearings last?

Typically 130,000 to 160,000 km. Poor roads, water ingress, impacts, modified wheels and incorrect installation can shorten this considerably.

What is the difference between Generation 1, 2 and 3 wheel bearings?

Generation 1 is a cartridge bearing pressed into the knuckle. Generation 2 adds one integrated flange. Generation 3 is a complete bolt-on hub unit with two flanges, often including the ABS encoder or sensor. They are not interchangeable.

Can I drive with a noisy wheel bearing?

Only for a short distance and at low speed to reach a workshop. A worn bearing gets worse quickly, can damage the hub and ABS sensor, and in the extreme can seize or allow the wheel to come loose.

Why does a new wheel bearing fail quickly?

Usually because of installation damage: pressing force applied through the rolling elements, use of a hammer, an encoder seal fitted the wrong way round, or incorrect axle nut torque. A corroded or damaged knuckle seat is another common cause.

Do wheel bearings need to be replaced in pairs?

It is not mandatory. If one bearing has failed from age and mileage, the one on the other side of the same axle has seen the same conditions and is often replaced at the same time to avoid a second visit.

How do I find the right wheel bearing for a vehicle?

Use the OEM part number from the old unit or from the parts catalog by VIN. Flange pattern, spline count and ABS encoder type vary between versions of the same model, so matching by model name alone is unreliable.
